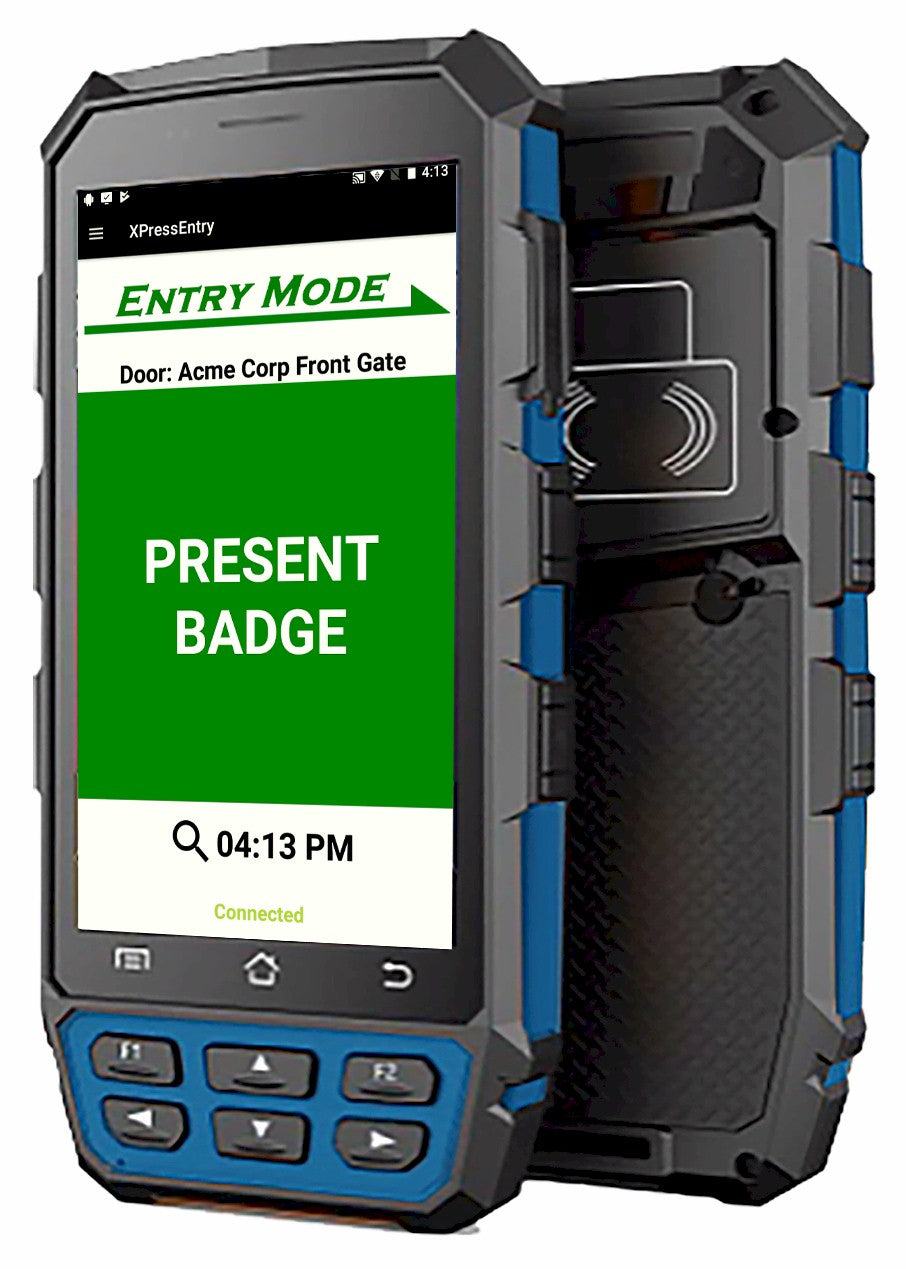

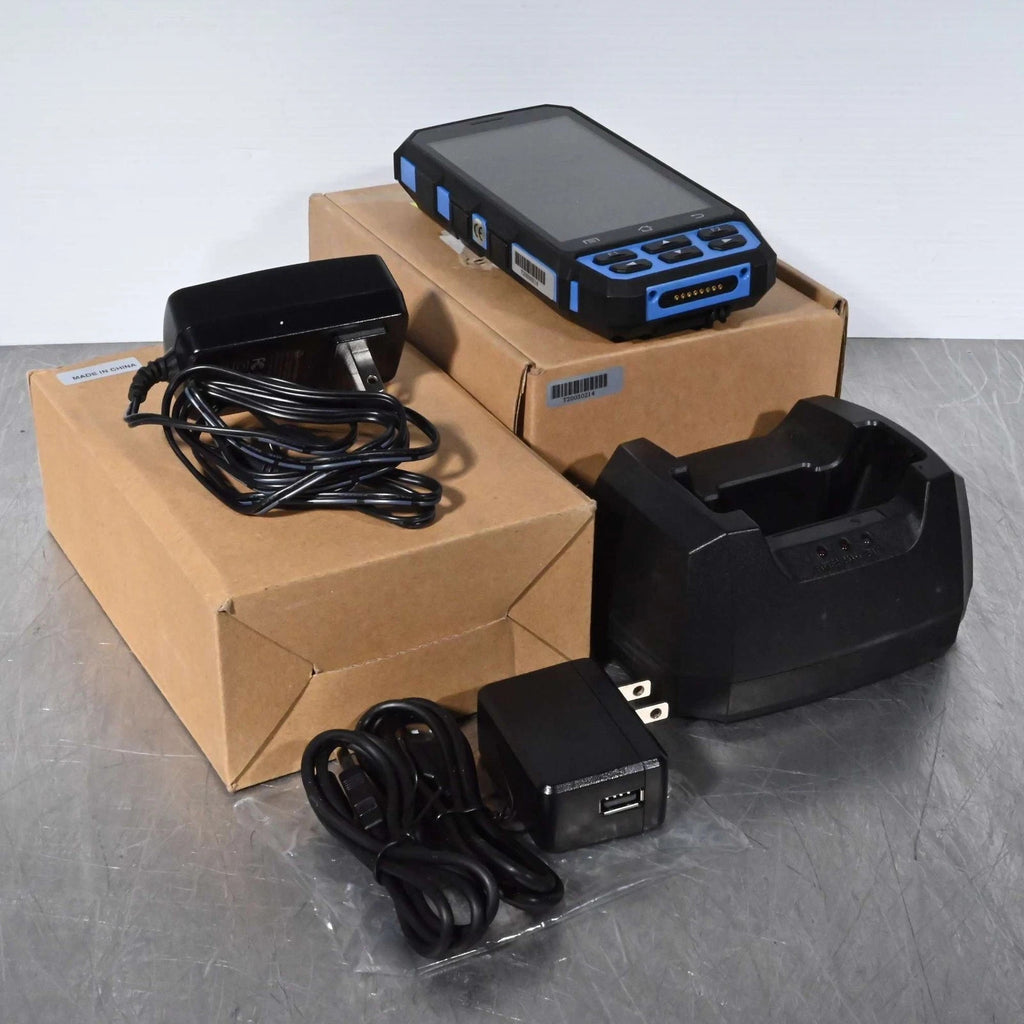

Telaeris XPID100 Handheld Badge Verifier Reader 8MP/5.5in WiFi Bluetooth, 4G LTE
$599.24
IN STOCK
CONDITION: NEW -- Unit is new, unused, in factory packaging.
XPID is a rugged Android handheld badge verifier. It provides excellent performance barcode, RFID, iClass, and Prox reading.
Benefits Include:
- Handheld PDA integrated with Multi-Technology badge reader
- Supports iClass, Prox, Indala, Mifare, PIV and many more!
- Full RFID SDK available for card read/write requirements
- IP65 rated device (Dust, Heavy Rain, Snow, 1.5m drop)
- GPRS, WiFi, Bluetooth, 1D/2D Barcode, GPS, Camera Options
Performance Characteristics
| Processor | Quad A53 1.3GHz |
| Operating System | Android 7.0 |
| Memory | 2GB RAM, 16GB ROM, MicroSD (max 32GB expansion) |
| Drop Spec | 5ft./1.5 m drop to concrete across the operating temperature range |
| Barcode Engine | 1D Laser or 2D CMOS Imager Barcode Scanner (Optional) |
| Camera | 8.0 Mega Pixel Auto Focus with LED Flash |
| Battery Supply Gun Version |
Rechargeable li-ion polymer, 3.7V, 8100mAh |
| Battery Supply PDA Version |
Rechargeable li-ion polymer, 3.7V, 4500mAh |
| Battery Supply Power Adaptor |
Input AC110V ~240V / Output DC 5V 3A |
Physical Characteristics
| Dimensions Handheld without cradle |
170mm(H)x85mm(W)x23mm(D)±2 mm |
| Dimensions Handheld with cradle |
197mm(H)x127mm(W)x95mm(D) |
| Display | 5.0 inch Gorilla Glass 3 9H TFT-LCD(720×1280) touch screen with backlight |
| Operating Temp. | 20C to 50C |
| Storage Temp. | -20C to 70C |
| Humidity | 5%RH to 95%RH (non-condensing) |
| Expansion Slot | 2 PSAM, 1 SIM, 1 TF |
| Dust & Water Proof | IP65, IEC compliance |
| Fingerprint | (Optional) Capacitive area sensor |
Network Characteristics
| WLAN | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0ISO15693 64 Bits ID E005100 |
| WWLAN | TDD-LTE, FDD-LTE, WCDMA, GSM/GPRS/Edge |
| GPS | GPS (embedded A-GPS), accuracy of 5 m |
RFID Module Support
| Radio Frequency & Tag Support LF |
(125KHz/134.2KHz): HID Prox / Indala / EM / CasiRusco / Pyramid |
| Radio Frequency & Tag Support HF |
(13.56MHz) iClassSE, SEOS, Mifare, PIV, Felica, Legic, ISO14443, ISO15693 |
| Radio Frequency & Tag Support UHF |
(902-928MHZ, 865.6-867.6MHz): EPC C1G2, ISO 18000-6C |
| Radio Frequency & Tag Support Active |
(433MHz) |

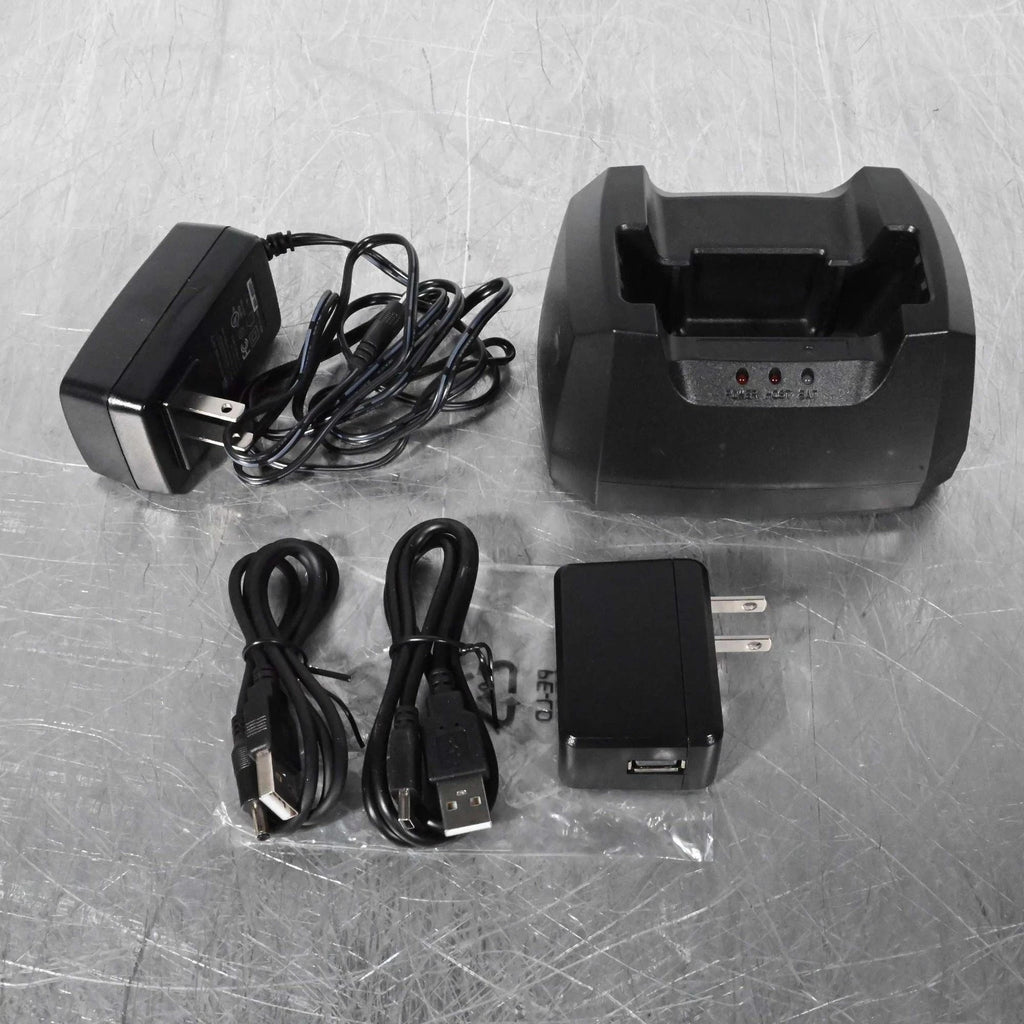

Cradle
| Standard Interface | USB / Power Jack / Extra Battery Charger |
| Ethernet Interface | RJ-45 Ethernet Interface (optional cable) |
